Decorative Wire Mesh Panel for Architectural Walls, Ceilings, Dividers, and Facades
Truji Architectural Mesh Co. manufactures decorative wire mesh panel products, classified by structure and use. Structural types include welded mesh panels, woven wire mesh panels, crimped wire mesh panels, expanded mesh panels, and perforated mesh panels. Usage categories cover wall cladding, ceiling panels, space dividers, railing infill, ventilation covers, and facade systems. These panels are made from materials such as stainless steel, aluminum, copper, or coated carbon steel. Surface finishes include powder coating, anodizing, polishing, and galvanizing. Common panel sizes are 1.2 * 2.4 m, with mesh openings ranging from 2 mm to 50 mm, and wire diameters from 1 mm to 8 mm. Designs can be customized according to architectural project requirements. Panel thickness, pattern, and installation system can also be adapted to suit indoor or outdoor applications. Panels are used in commercial buildings, hotels, office spaces, transportation hubs, and public areas. We welcome cooperation and inquiries from engineering firms, contractors, and architectural design teams.
Decorative Mesh Panel Image Display

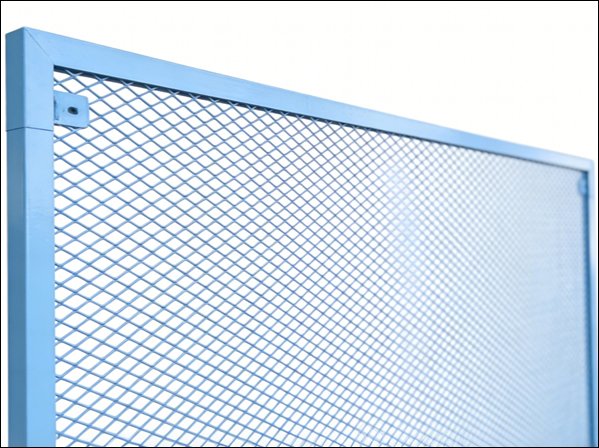

Expanded Metal Mesh Panel Frame System for Cladding and Protective Architectural Applications Use
Material: Carbon steel, stainless steel, or aluminum
Mesh Type: Expanded metal mesh
Aperture Size: 10 * 20 mm to 50 * 100 mm
Strand Width and Thickness: 2 - 5 mm width, 1.5 - 3.0 mm thickness
Panel Dimensions: Custom frame sizes available
Surface Treatment: Powder coating or galvanizing
Open Area Ratio: 50 - 70%
Weight Range: 5 - 15 kg/m2
Application Scope: Wall cladding, fencing, equipment guards
Installation Method: Frame fixing with bolts or welding

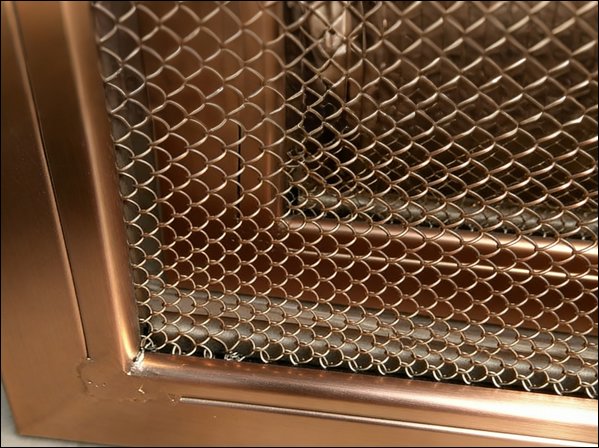

Metal Ring Mesh Decorative Panel for Interior Screen and Architectural Partition Applications Use
Material: Stainless steel, brass, or copper
Mesh Type: Ring mesh interlinked structure
Ring Diameter: 6 - 10 mm
Wire Diameter: 1.0 - 1.5 mm
Panel Dimensions: Custom panel sizes
Surface Treatment: Polishing or plating
Open Area Ratio: 60 - 80%
Weight Range: 6 - 12 kg/m2
Application Scope: Interior screens, cabinet inserts, partitions
Installation Method: Frame mounting or hook fixing

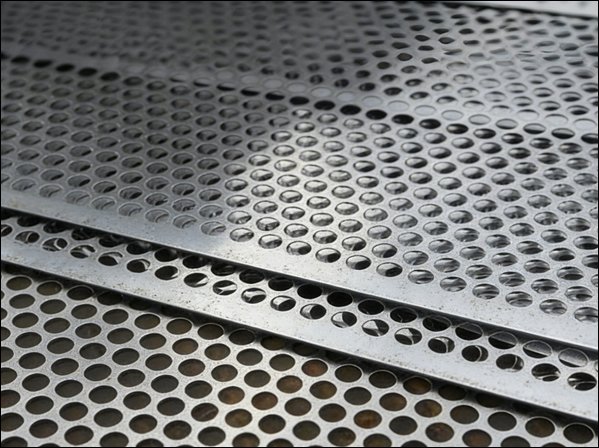

Perforated Metal Mesh Panel Sheet for Wall Cladding and Interior Partition Systems Use
Material : Mild steel, stainless steel, aluminum
Hole Type: Round perforation
Hole Diameter: 3 - 10 mm
Pitch Distance: 5 - 15 mm
Sheet Thickness: 1.0 - 3.0 mm
Panel Dimensions: 1000 * 2000 mm standard
Surface Treatment: Powder coated or galvanized
Open Area Ratio: 20 - 50%
Application Scope: Wall panels, ceilings, ventilation covers
Installation Method: Frame mounting or screw fixing

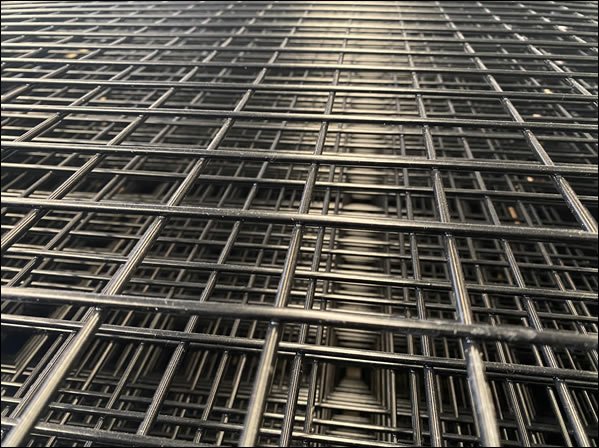

Welded Wire Mesh Panel Structure for Industrial Reinforcement and Architectural Decorative Panel Use
Material: Low carbon steel or stainless steel
Mesh Type: Welded wire mesh
Aperture Size: 10 * 10 mm to 50 * 50 mm
Wire Diameter: 2.0 - 5.0 mm
Panel Dimensions: Standard and custom sizes
Surface Treatment: Galvanized or powder coated
Open Area Ratio: 50 - 75%
Weight Range: 8 - 20 kg/m2
Application Scope: Reinforcement, fencing, partitions
Installation Method: Direct fixing or framed installation

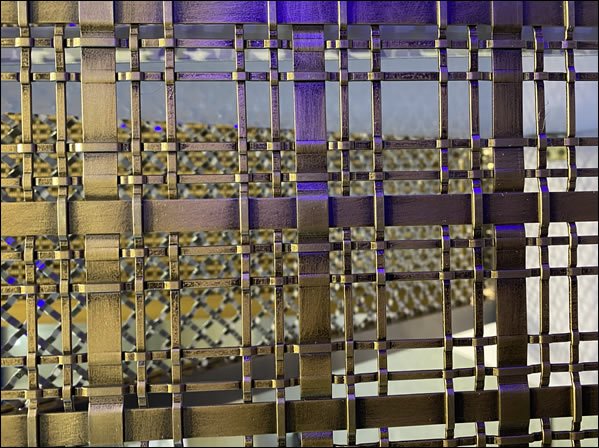

Flat Bar Woven Metal Mesh Panel for Architectural Screen and Interior Decorative Panel Use
Material: Stainless steel or brass
Mesh Type: Flat bar woven mesh
Aperture Size: 15 * 15 mm to 30 * 30 mm
Bar Width and Thickness: 3 - 6 mm width, 1.5 - 3.0 mm thickness
Panel Dimensions: Custom sizes available
Surface Treatment: Brushed or plated
Open Area Ratio: 40 - 60%
Weight Range: 10 - 25 kg/m2
Application Scope: Screens, partitions, wall panels
Installation Method: Frame mounting system

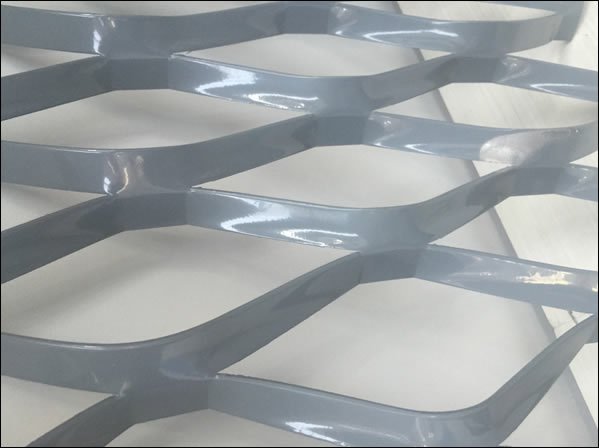

Expanded Metal Mesh Panel Sheet for Industrial Flooring and Architectural Cladding Panel Use
Material: Steel, stainless steel, aluminum
Mesh Type: Expanded metal sheet
Aperture Size: 20 * 40 mm to 60 * 120 mm
Strand Thickness: 2.0 - 4.0 mm
Panel Dimensions: Standard sheet sizes
Surface Treatment: Galvanized or painted
Open Area Ratio: 60 - 80%
Weight Range: 6 - 18 kg/m2
Application Scope: Walkways, cladding, protective covers
Installation Method: Welded or bolted installation

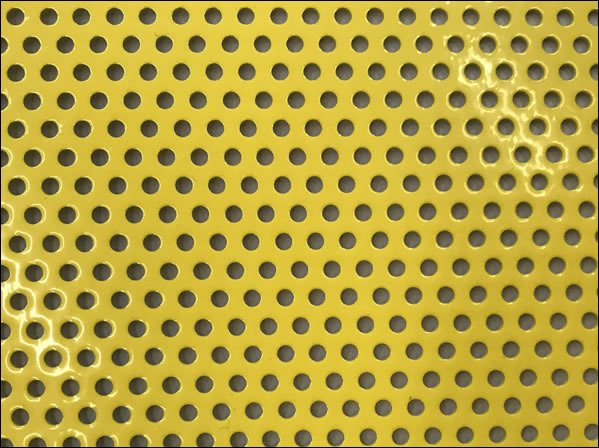

Perforated Metal Mesh Panel Plate for Ventilation Systems and Architectural Decorative Panel Use
Material: Steel, aluminum, stainless steel
Hole Type: Round hole perforation
Hole Diameter: 2 - 8 mm
Pitch Distance: 4 - 12 mm
Sheet Thickness: 0.8 - 2.5 mm
Panel Dimensions: Custom sheet sizes
Surface Treatment: Powder coating or anodizing
Open Area Ratio: 30 - 60%
Application Scope: Vent panels, ceilings, partitions
Installation Method: Screw fixing or frame installation

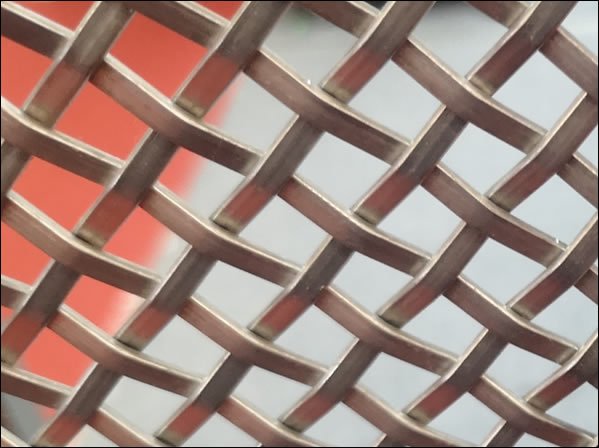

Crimped Woven Wire Mesh Panel for Industrial Screening and Architectural Decorative Panel Use
Material: Carbon steel, stainless steel
Mesh Type: Crimped woven mesh
Aperture Size: 5 - 50 mm
Wire Diameter: 1.5 - 4.0 mm
Weaving Method: Pre-crimped wire weaving
Panel Dimensions: Standard and custom sizes
Surface Treatment: Galvanized or coated
Open Area Ratio: 40 - 70%
Application Scope: Screening, partitions, protective panels
Installation Method: Framed or direct fixing systems
